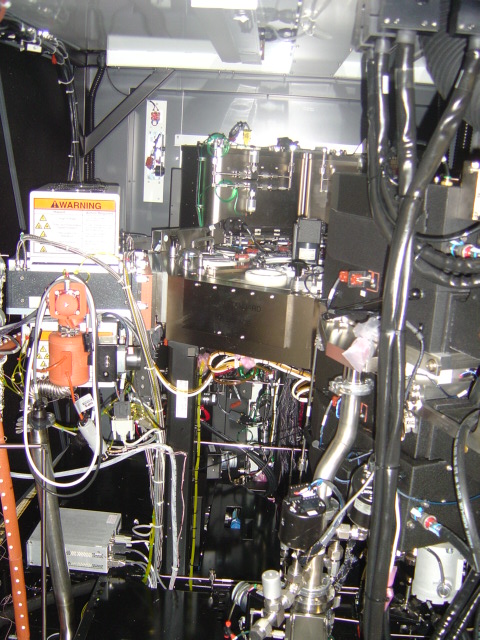

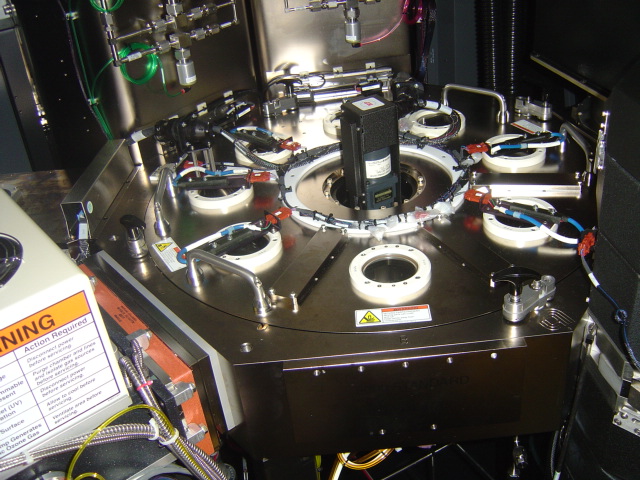

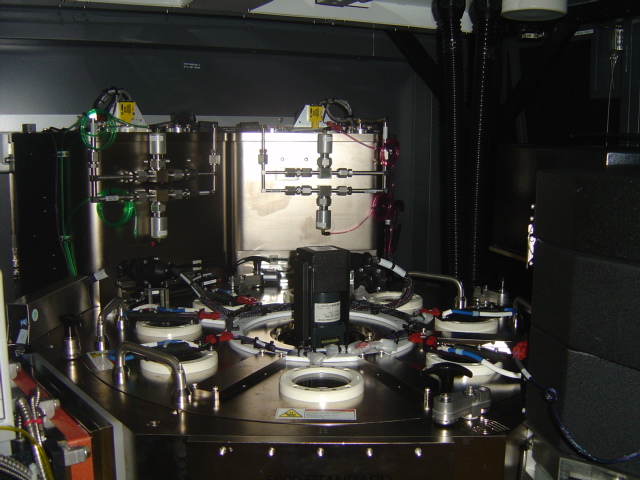

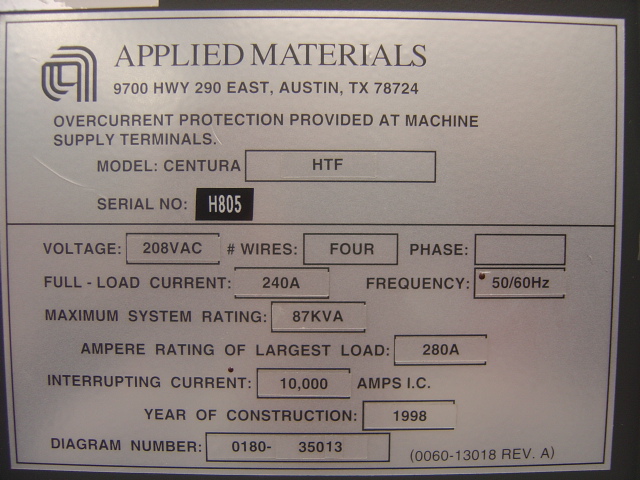

AMAT Centura 5200 HTF

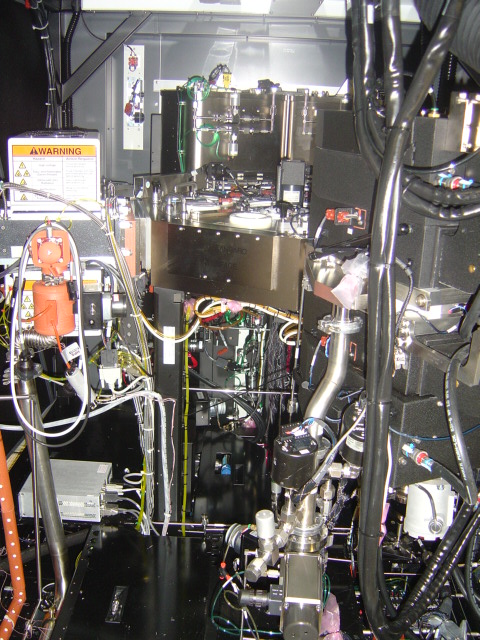

  • CH-A Poly HT, Polysilicon deposition chamber doped and
    undoped, 200mm, 450c - 1200c temp range, reduced pressure
  • CH-C RTP; version MOD2 rapid thermal oxide deposition and
    rapid thermal anneal (O2 and N2) 450C-1100C range, reduced
    pressure

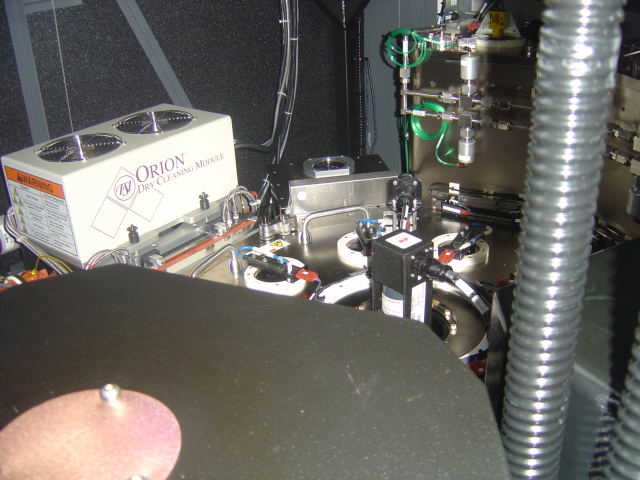

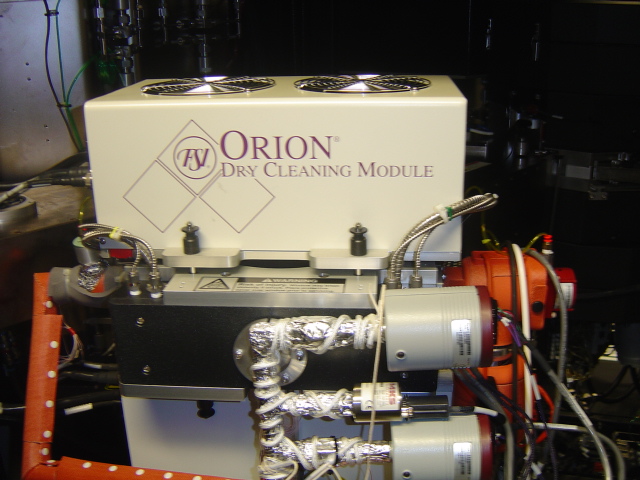

  • CH-D HF clean chamber

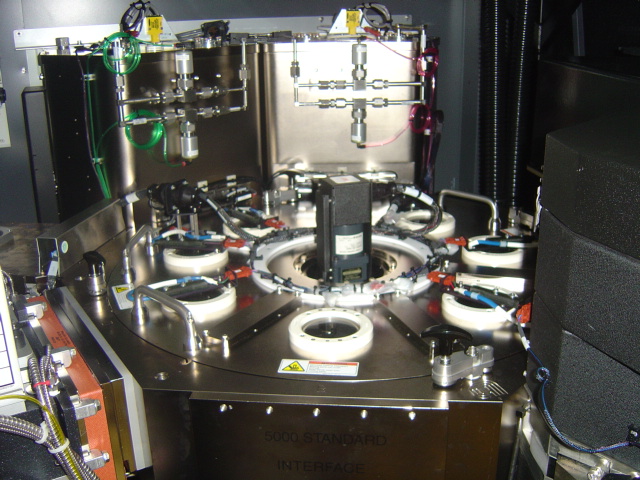

  • CH-F; Centura centerfinder

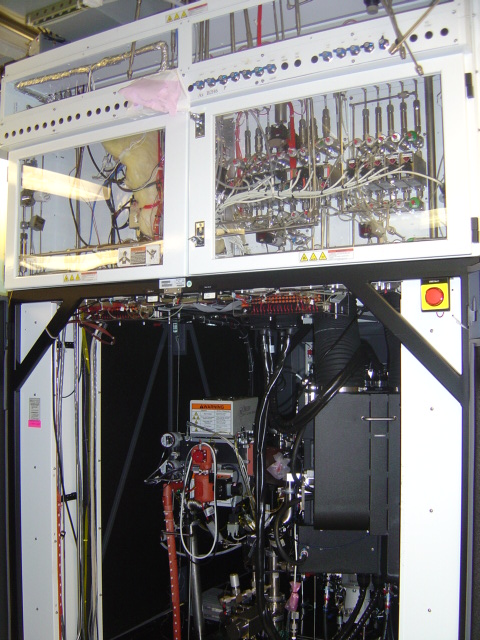

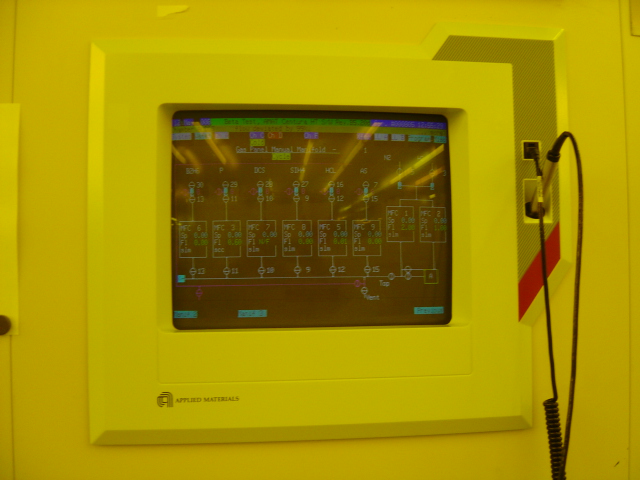

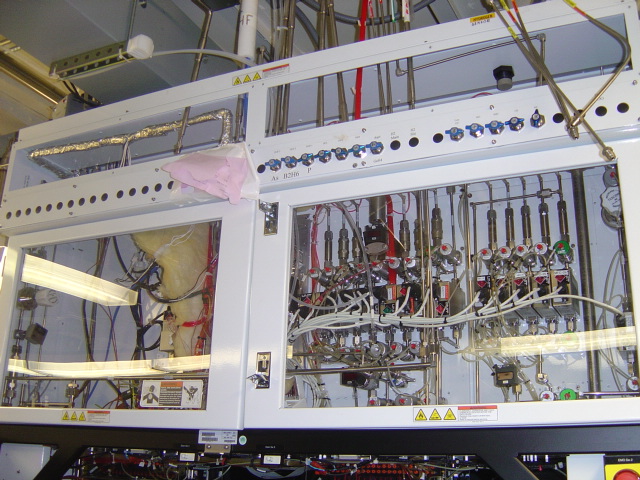

  • Gaspanel; Centura HT gas panel

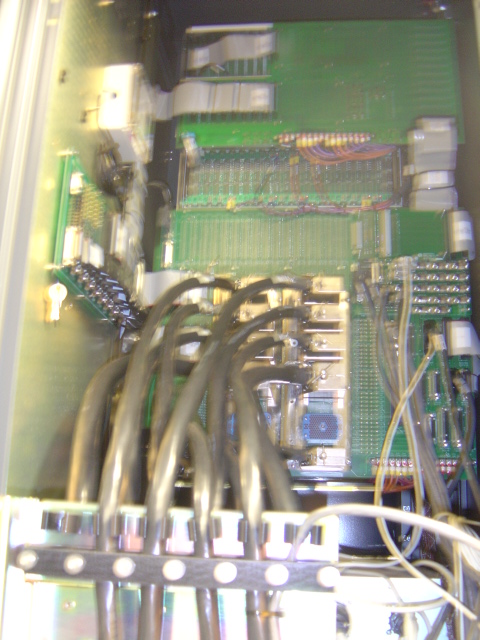

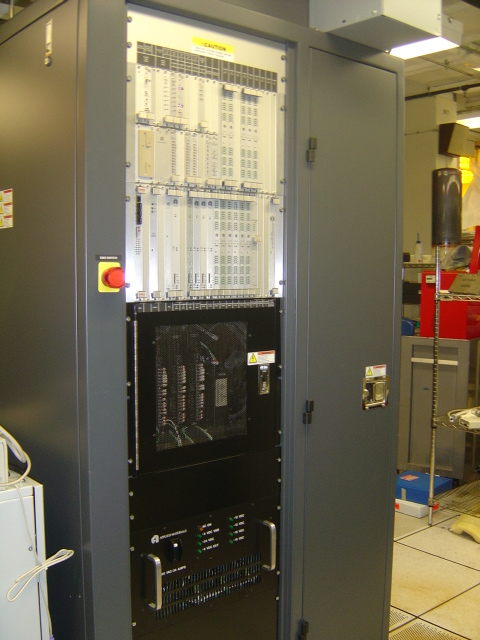

  • Remote frame; Centura remote frame/VME controller

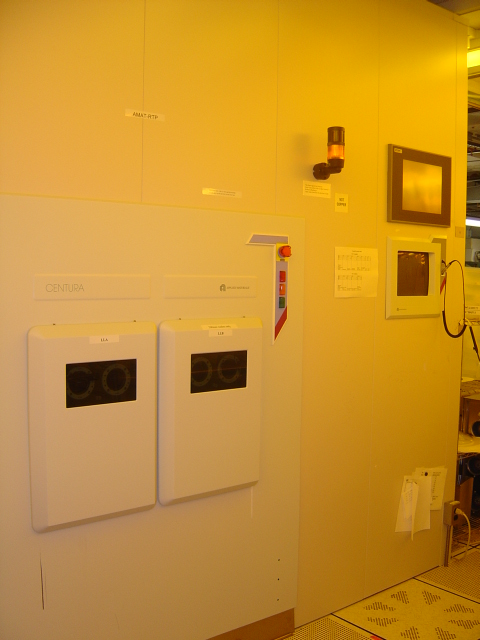

  • Loadlocks; standard wide body

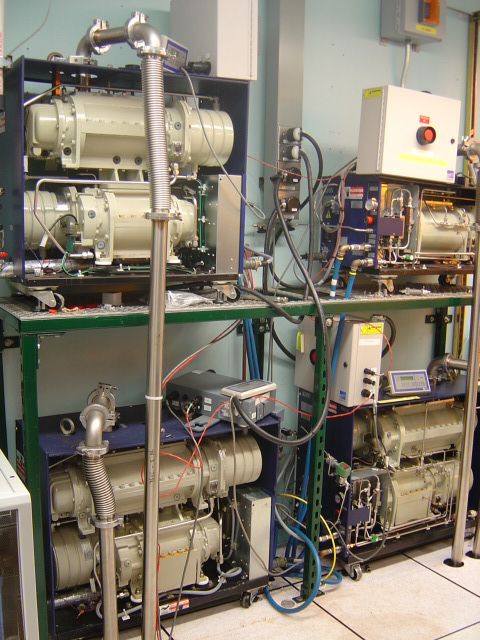

  • Four vacuum pumps: loadlock, X-fer chamber, Poly chamber
    and RTP chamber

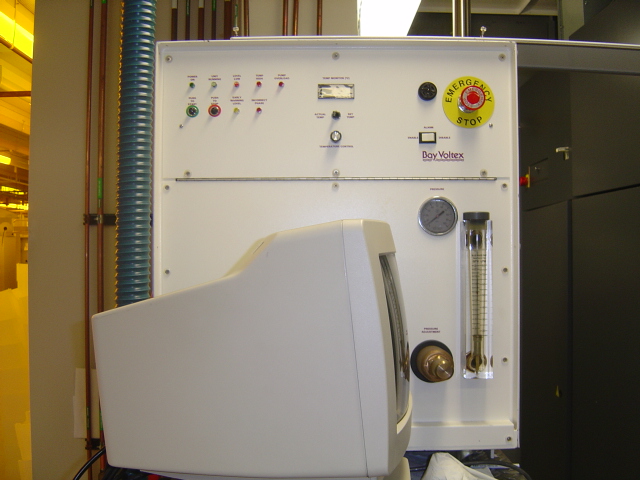

  • 20 GPM Bay Voltex heat exchanger for the RTP system

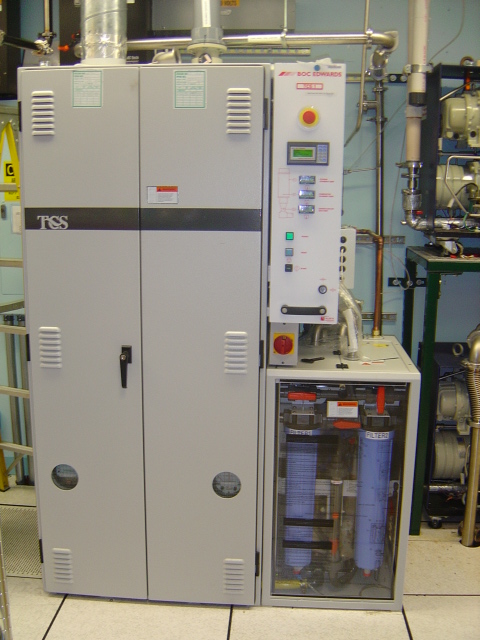

  • BOC TCS-1 Effluent scrubber
